Choke Wire Size
-
rbsWELDER
- Full Blown BucketHead
- Posts: 1612
- Joined: Tue Jul 10, 2012 10:25 am
- Handle: rbswelder
Choke Wire Size
The choke was never hooked up in my T. What size wire should I use? 14 guage?
Mark Olejarczyk
"Carolina T's"
Growing Older Is Mandatory.
Growing Up Is Optional...
"Carolina T's"
Growing Older Is Mandatory.
Growing Up Is Optional...
-
Bill Cleveland
- Full Blown BucketHead
- Posts: 5146
- Joined: Fri Dec 21, 2012 2:57 pm
- Handle: Spanky
- Location: Saint Louis
Re: Choke Wire Size
Mine is 18 ga - should be plenty according to Painless.
- T-Bucket8b.jpg (162.05 KiB) Viewed 197 times
Spanky
-
winfield scott
- Full Blown BucketHead
- Posts: 1341
- Joined: Tue Jul 10, 2012 12:18 pm
- Handle: SS-T
Re: Choke Wire Size
14 will be plenty, 16 is pretty common, Mark
-
rbsWELDER
- Full Blown BucketHead
- Posts: 1612
- Joined: Tue Jul 10, 2012 10:25 am
- Handle: rbswelder
Re: Choke Wire Size
Thanks guys!
Mark Olejarczyk
"Carolina T's"
Growing Older Is Mandatory.
Growing Up Is Optional...
"Carolina T's"
Growing Older Is Mandatory.
Growing Up Is Optional...
-
Indycars
- Full Blown BucketHead
- Posts: 762
- Joined: Wed Nov 27, 2013 6:01 pm
- Handle: Indycars
Re: Choke Wire Size
I measured the resistance of the choke to be 10 ohms on my Demon carburetor. Therefore
using 13 volts, I get 1.3 amps of current.
13volts/10ohms=1.3 amps
Just to be on the conservative side, I used 2 amps on the table and went straight across.
Eighteen gauge wire should carry the current up to 25 feet. But I didn't buy wire for every
gauge. The smallest I have is 16 gauge, so that's what I used.
.
using 13 volts, I get 1.3 amps of current.
13volts/10ohms=1.3 amps
Just to be on the conservative side, I used 2 amps on the table and went straight across.
Eighteen gauge wire should carry the current up to 25 feet. But I didn't buy wire for every
gauge. The smallest I have is 16 gauge, so that's what I used.
.

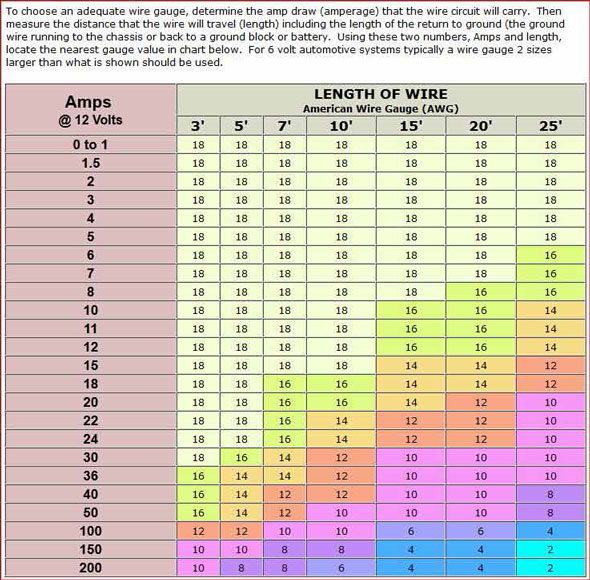

- WireGaugeToAmpTable01.jpg (107.94 KiB) Viewed 201 times
- OhmsLawPieChart.jpg (28.34 KiB) Viewed 201 times
Rick
Oklahoma
Too Much Is Just Enough !!!
Oklahoma
Too Much Is Just Enough !!!
